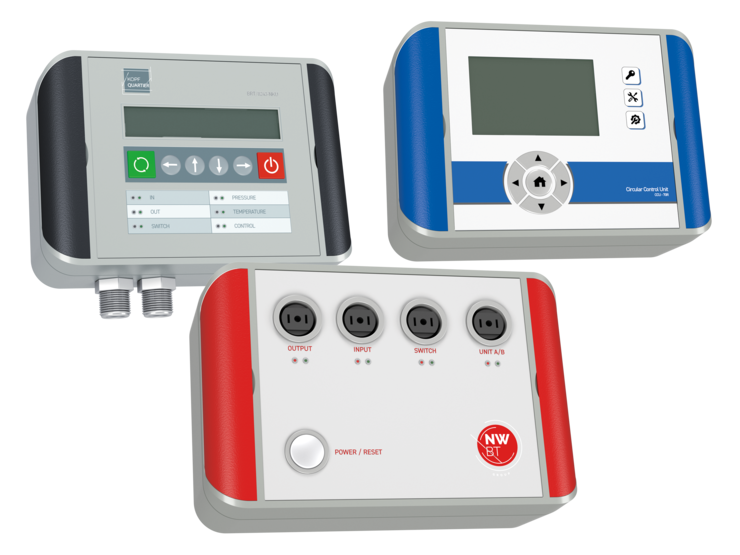

starCASE-Coloured-
starCASE-Coloured-

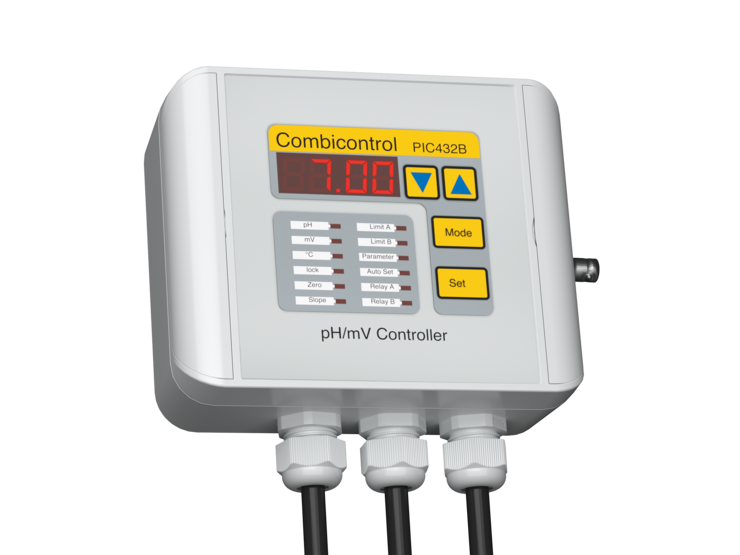

starCASE enclosures application
starCASE enclosures application
Premium plastic enclosures made from high-performance LURAN.
Premium plastic enclosures made from high-performance LURAN.
Recess in the lid for membrane keypads, labels and face plates
Recess in the lid for membrane keypads, labels and face plates
Hinged covers hide the lid fixings and mounting screws
Hinged covers hide the lid fixings and mounting screws
starCASE can be mounted without opening the lid (protecting the electronics inside)
starCASE can be mounted without opening the lid (protecting the electronics inside)
Supplied with lid retaining straps
Supplied with lid retaining straps
Sealing set for fitting lead security tags (marked in red)
Sealing set for fitting lead security tags (marked in red)
starCASE-Coloured-
starCASE enclosures application
Premium plastic enclosures made from high-performance LURAN.
Recess in the lid for membrane keypads, labels and face plates
Hinged covers hide the lid fixings and mounting screws
starCASE can be mounted without opening the lid (protecting the electronics inside)
Supplied with lid retaining straps
Sealing set for fitting lead security tags (marked in red)
starCASE_video_group_en

starCASE

The thermoplastic design enclosure for electronics & devices

IP 66

The key product features:

• Enclosure material: ASA + PC
• Enclosure colour similar to RAL 7035
• Integrated lid support
• The enclosure can be mounted when the lid is fitted
• Lid screws stainless steel 1.4567
• Integrated recess in cover for membrane keypad or front plate
• Design covers to conceal the assembly level
• Fire protection class UL-94 V-0
• Enclosure seal: silicone moulded seal

More


starCASE is a truly multipurpose range of plastic enclosures moulded in flame-retardant ASA+PC. These highly attractive and ergonomic housings are perfectly suitable for modern industrial electronics. The enclosures can be mounted on a wall, bulkhead, ceiling or machine – everything is possible.

Unique ROLEC design features include a recessed lid for fitting a membrane keypad, product label or front plate, hinged design covers which hide the lid screws and separate mounting channels, and lid retaining supports for holding the lid in place when the housing is open. The enclosures can be mounted without opening the lid which means your electronics remain protected at all times. Screw bosses are provided inside for fitting circuit boards, mounting plates, terminal rails etc. Matching accessories and cable glands are also available.

We can supply starCASE enclosures fully customised to your requirements.

Request offer PDF datasheet
Product overview Dimensions Data Sheets Data
Enclosure sizes8
Further informationIntegrated recess for membrane keypads or front plates
Integrated lid support, polypropylene (PP)
Optional: Access safeguard by means of sealing set
Full protective insulation in accordance with VDE 0100
Enclosure ASA+PC, RAL 7035 light grey: 2° mould slope for casting ejection > internal circumference dimensions decrease by 2° towards enclosure base.
Snap-on design covers, captive, ASA LURAN S, RAL 7035 light grey
Special materials and colours on request
FlammabilityUL 94 V-0 1.5 mm
Fastening Separate screw channels outside of the enclosure interior. Enclosure fastened while lid closed
Internal mounting Fastening option for self-grooving screws on the base of the enclosure and in the lid
Ingress protectionIP 66 / EN 60529
Gasket Silicone moulded seal
Lid screws Stainless steel 1.4567, captive
CustomisingLearn more about our full customising service for installation-ready enclosures
