The design support arm system
The key product features:
• System components: diecast aluminium, RAL 7035 light grey
• Covers: thermoplast, RAL 7016, anthracite grey
• Support profiles: extruded aluminium, rectangular and round tube ∅ 48 mm, silver anodised
• Can be used with all ROLEC control enclosures
• Possible to route connectors such as HDMI, patch cable, USB, etc.
• Gasket: Chloroprene (CR)

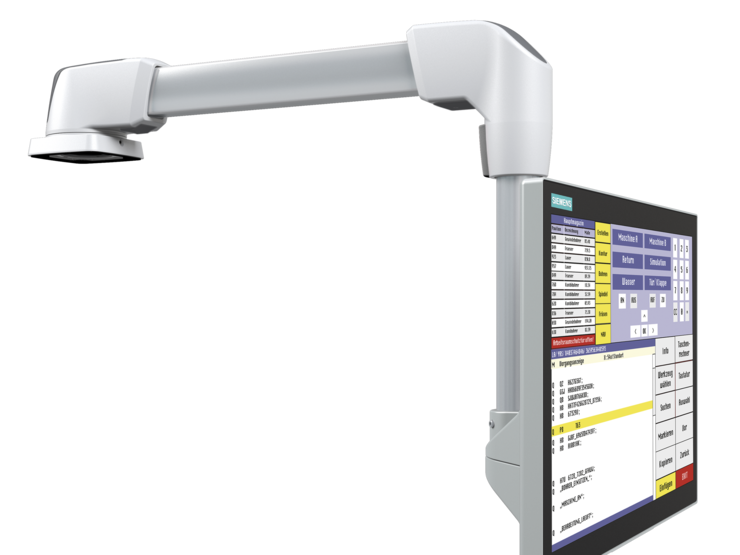

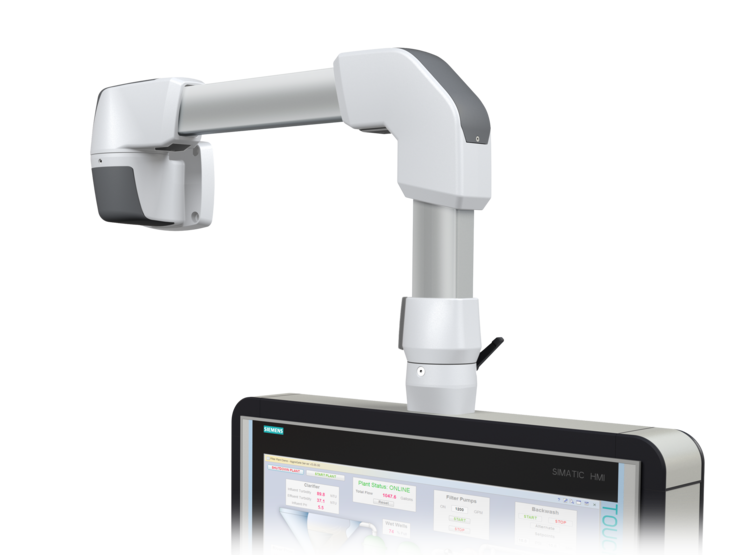

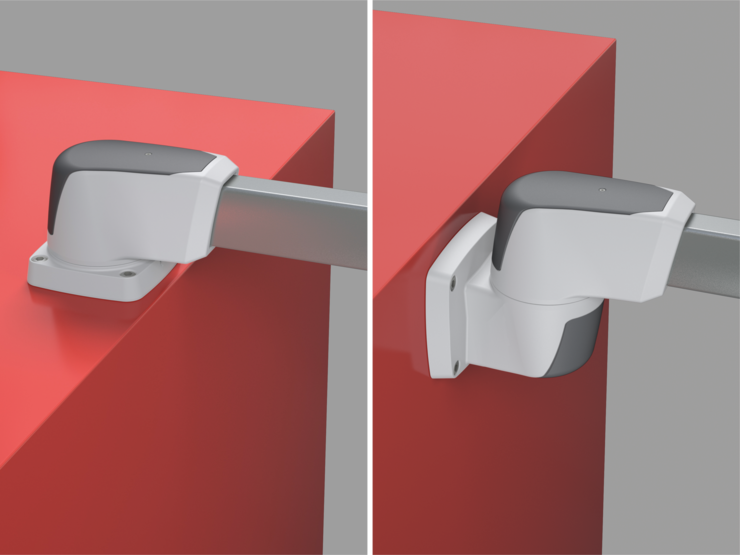

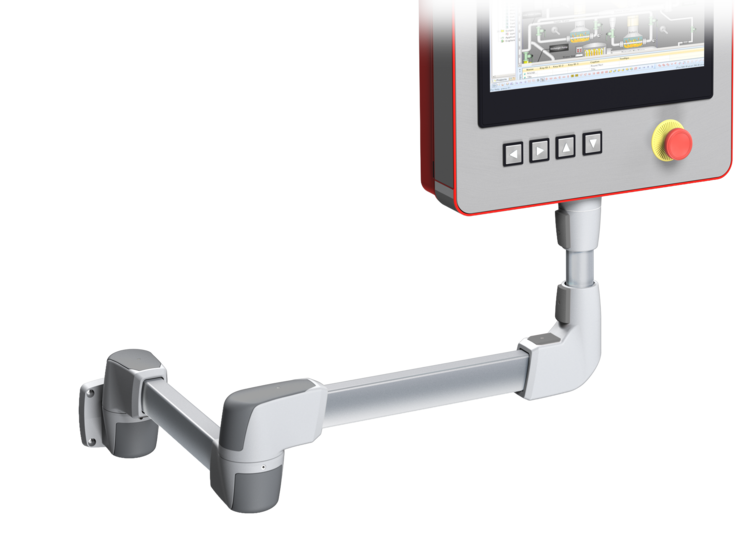

taraSMART is a sophisticated suspension arm system for modern machine construction. The perfect symbiosis of technical design and sophistication. It offers sufficient space for routing HDMI or DVI cables, or network plugs. Installation is quick and easy, thanks to the familiar, tried and tested technology. The coupling variants of the system enable the connection of both narrow and deep control enclosures. Thanks to the Ø48 bracket, the straightforward connection of panel PCs with a round tube frame can take place without additional adapters.
To configure this product, please contact us without obligation. We are happy to help.
|Economic, compact and elegant designer suspension arm system for light to medium loads
|Connection of HMI/control enclosures from leading manufacturers with a round tube frame (such as Siemens, Beckhoff, B&R) possible
|The generous cable routing offers an optimum connection with all interfaces, sufficient space is available for a range of cables and connectors
|Horizontal alignment of the complete system assembly possible at all joints!
|Die-cast aluminium alloy, powder coated RAL 7035 light grey
|Optional: Special colours
|Support profiles: Extruded aluminium profile, silver anodised
|Ø48 round tubes: steel, silver coated
|Covers: Thermoplast, RAL 7016, anthracite grey
|Chloroprene O-ring gasket (CR)
|Suitable for HDMI, patch cables, DVI, USB, cold-device plugs, etc.
|IP 54 / EN 60529
|Avail of our Full Service Offer for installation-ready products
|If you have any questions or require individual configuration, your field service contact will be happy to assist
