aluCASE AC 200
191.200.100
IP 66
IP 67
IP 69K opt.
- Lid with recess for accommodating membrane keypads/front panels
- Design covers for concealing the screw channels
- Mounting of the enclosure without opening the lid
Technical data
| Typ drawings | AC 200 |
| Articlenumber | 191.200.100 |
| Width (W) x Length (L) x Height (H) | 200x230x120 |
| Assembly measure D x E | 140 x 210 |
| Weight (W) | 2005 |
| Color measure D x E |
RAL 7040 |
| Design covers Alu | |
| Integrated lid supports | |
| Designed gasket | |
| IP 66 | |
| IP 67 | |
| IP 69K opt. | |
| Customs tariff number | 76169910 |
Technical drawings
Accessories
-
Raised ingress protection -
Corrosion proof coating RAL 5009 -

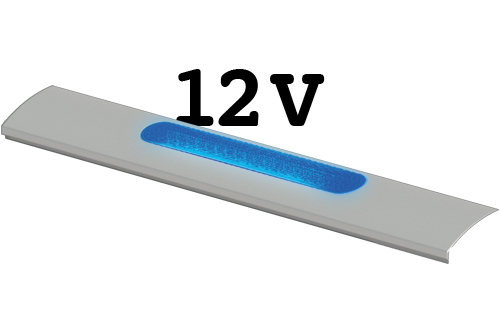

LED strip 12 V -

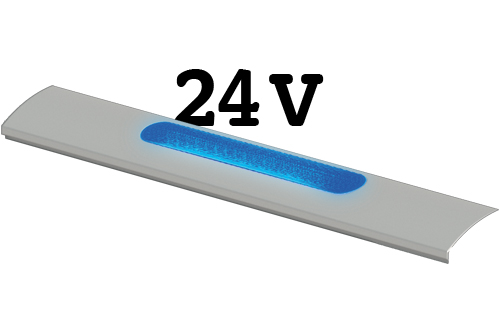

LED strip 24 V -
Silicone enclosure gasket -
EMC shielding -

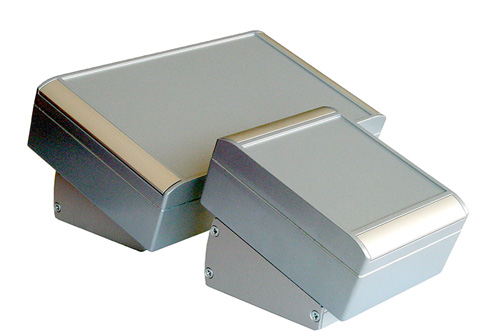

Panel adapter
