aluCLIC
- The world’s only quick-change enclosure
- Extra large internal space
- Fully usable enclosure front– virtually without a bezel
Product description

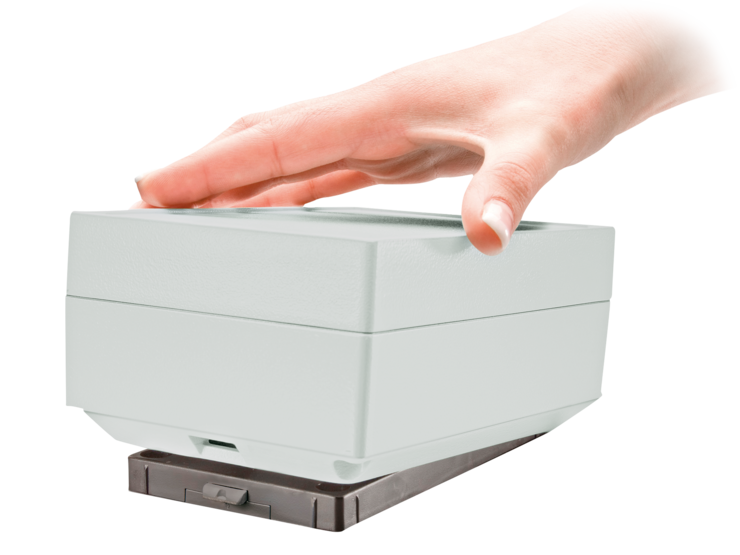

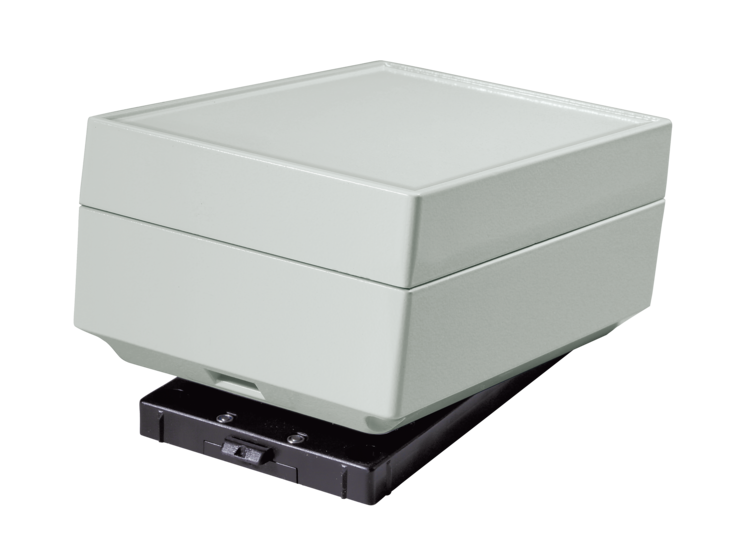

aluCLIC is a very attractive and unique range of aluminium enclosures which is designed for quick installation and rapid exchange of electronics equipment. A snap lock located under the enclosure can be easily disengaged and the enclosure changed in an instant. These enclosures really are practical, fast and neat to install.

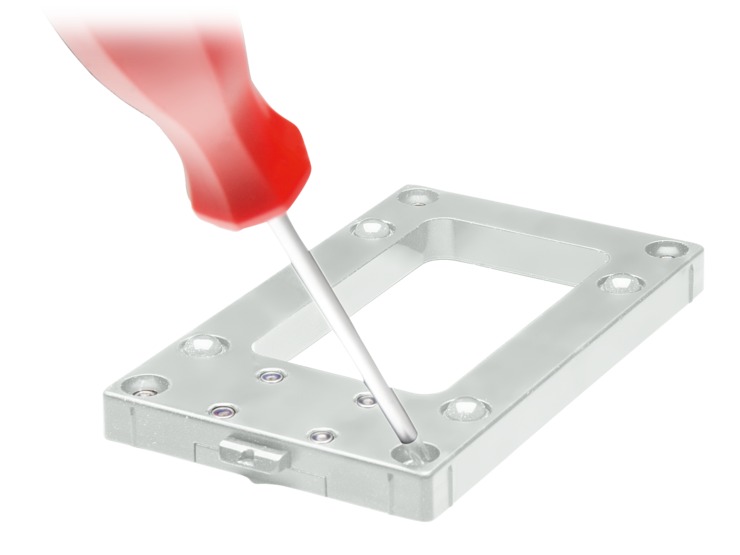

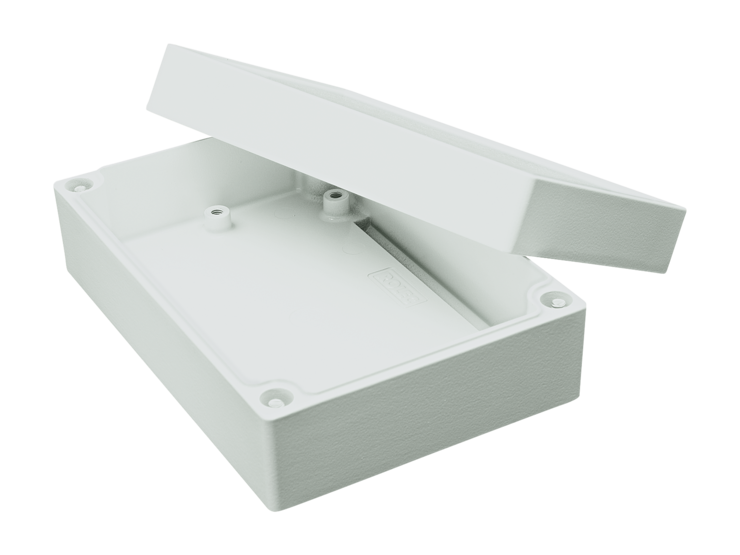

Standard features include a full sized recessed area in the lid to accommodate a membrane keypad, front plate or product label, hidden assembly screws on the underside and threaded screw bosses in the base and lid for PCBs, mounting plates, DIN rails etc.. The enclosure snap-on device can be easily fastened to a wall, ceiling or a machine housing.
We can supply aluCLIC enclosures fully customised to your requirements
Technical data
| Enclosure sizes | 3 |
| Additional info | Snap-on instead of mounted by screws |
| Change the enclosure in seconds | |
| More space for the electronics | |
| Enclosure front fully usable | |
| Lid screwed on rear side | |
| Integrated recess in the lid for a membrane keypad, front plate or product label | |
| Enclosure | Diecast aluminium alloy |
| EN AN-44300 DIN EN 1706 | |
| (GD Al Si 12/DIN 1725) | |
| 1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom. | |
| Fastening | Snap-on device, plastic (POM), RAL 9005 |
| Internal mounting | M5 fastening thread on the enclosure base and in the lid |
| Ingress protection | IP 66, IP 67 / EN 60529 |
| Optional: IP 69K / DIN 40050 | |
| Gasket | TPE moulded gasket, silicone-free |
| Optional: Silicone gasket | |

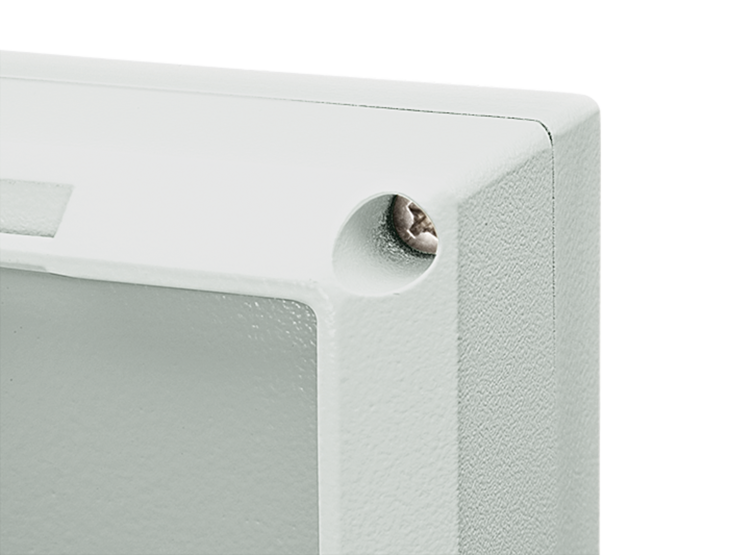

| Lid screws | Stainless steel 1.4567, captive |
| Surface | Powder coating RAL 7035 |
| Optional: Special colours | |
| Optional: Corrosion protection | |
| Customising | Learn more about our full customising service for installation-ready enclosures |
Find out more about the product in the video
Watch the video to learn more about aluCLIC and get a clear impression of the product. The video gives you the opportunity to experience aluCLIC from different perspectives and get an initial overview.
Frequently Asked Questions
Yes. ROLEC offers a range of options for customising the colour of your enclosures, HMI enclosures and support arm systems.
Depending on the application, the following options are available, amongst others:
• Powder coatings in almost all RAL colours
• 2K wet paint finishes
• Highly weather-resistant coatings
• Surface treatments such as SurTec 650
The most suitable coating depends on the environmental conditions and your design requirements.
Yes. In addition to our extensive standard range, we offer numerous options for customisation.
Our product ranges, for example, are particularly flexible:
• multiPANEL
• profiPANEL
• mobilCASE
Furthermore, on a case-by-case basis, we also produce project-specific non-standard sizes and bespoke designs.
Yes. Many ROLEC enclosures are ideal for use with membrane keyboards, as they already feature a recessed area in the lid designed to accommodate them.
On request, we can supply your chosen enclosure complete with a precisely fitted membrane keyboard and other components such as display panels or front films. All components are tailored exactly to your application and professionally assembled.
Yes. ROLEC offers a range of methods for permanent, high-quality marking of your enclosures.
These include, amongst others:
• Screen printing
• Digital printing
• Engraving
• Company logos and customised markings
The marking is tailored precisely to your corporate design and technical requirements.
Yes. Given the wide range of enclosure series, materials and configuration options available, we would definitely recommend a personal consultation.
Our experts will help you choose the right enclosure solution and support you every step of the way, from the initial idea to the finished product. In many countries, we also offer on-site consultations. Find your personal contact here.
The durability of an enclosure depends on the material used and the specific operating conditions.
Factors that influence this include, for example:
• Chemicals and cleaning agents
• UV radiation
• Moisture and salt water
• Temperature
• Mechanical stress
Your personal contact will help you select the right material for your application.
Yes. On request, we can supply your housing fully machined and ready for assembly.
Our range of services includes, amongst other things:
• Drilling, milling and thread cutting
• Cut-outs for displays and control elements
• Integration of HMI components
• Engraving, screen printing and digital printing
• Customised surface finishes
This means you receive a complete, ready-to-install solution from a single source.
ROLEC enclosures are designed for continuous use in demanding industrial environments. Their mechanical robustness is described, amongst other things, by the IK protection rating and depends on the material, design and application.
We would be happy to recommend the right enclosure solution for your mechanical requirements.
Yes. On request, ROLEC can provide you with much more than just an empty housing.
Among other things, we take care of:
• mechanical machining
• assembly of components
• fitting of display panels
• integration of membrane keyboards
• assembly of HMI components
• customised labelling and surface finishes
You’ll receive a complete, ready-to-install solution that’s precisely tailored to your application. This reduces assembly effort, saves time and means you benefit from a single point of contact throughout the entire project.
The lead time depends on the enclosure series selected and the extent of the required finishing. Many standard enclosures are available at short notice. Customised solutions involving machining, labelling or assembly may take slightly longer, depending on the project.
Thanks to our manufacturing facilities in Germany and efficient production processes, we are also able to complete bespoke projects at short notice. We would be happy to provide you with the delivery time for your chosen specification.
Yes. We are happy to provide you with a sample of our products on request.
In addition, we can assist you with the development of prototypes and manufacture these, including machining, labelling or customised features. This allows the fit and function to be reliably tested even before series production begins.
The required protection rating depends on the environmental conditions to which the enclosure is exposed. Depending on the product, ROLEC offers protection ratings ranging from IP 54 to IP 69K, providing solutions for a wide variety of applications – from dusty production environments to high-pressure cleaning.
