conFORM EK 161
110.161.000
IP 66
IP 67 opt.
- Inexpensive and robust RFI/EMI enclosures in a useful range of sizes

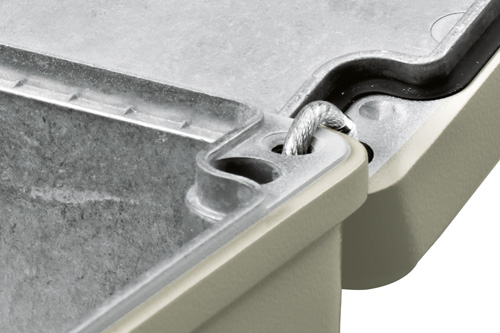

- Integrated tooth system between lid and base for bonding
- No delicate and expensive RFI/EMI gaskets required
Technical data
| Typ drawings | EK 161 |
| Articlenumber | 110.161.000 |
| Width (W) x Length (L) x Height (H) | 170x170x100 |
| Assembly measure D x E | 110 x 140 |
| Weight (W) | 1550 |
| Color measure D x E |
RAL 7032 |
| EMC-Shielding | |
| Designed gasket | |
| IP 66 | |
| IP 67 opt. | |
| Customs tariff number | 76169910 |
Technical drawings
Accessories
-
Raised ingress protection -
Corrosion proof coating RAL 5009 -
Silicone enclosure gasket -
Hinges -
Lid support -

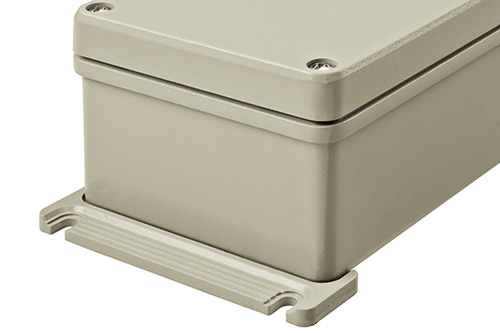

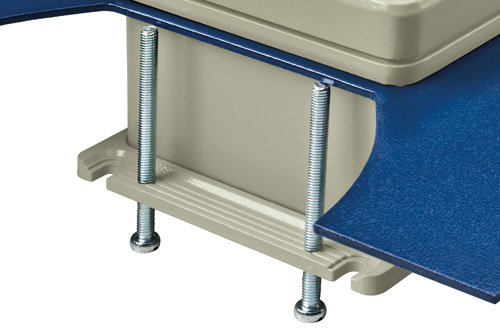

External mounting brackets -
Installation kit -

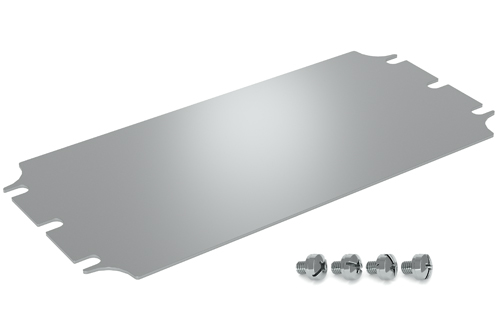

Mounting plate -

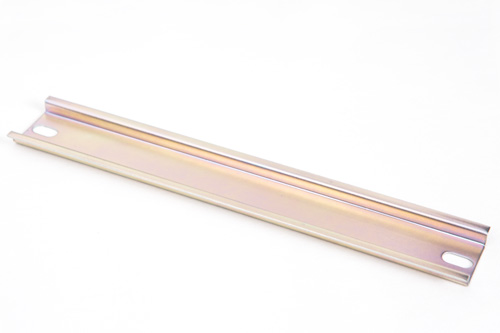

Supporting rail
