Request offer
technoBOX TBA 162
220.162.000
IP 66
- The special ABS standard
- Beveled lid edges
- Lid with recess for accommodating membrane keypads/front panels
Technical data
| Typ drawings | TBA 162 |
| Articlenumber | 220.162.000 |
| Width (W) x Length (L) x Height (H) | 160x240x80 |
| Assembly measure D x E | 130 x 230 |
| Weight (W) | 650 |
| Color measure D x E |
RAL 7035 |
| PUR Gasket | |
| IP 66 | |
| Customs tariff number | 39269097 |
Technical drawings
Accessories
-
Front plate -
Hinges -
External mounting brackets -

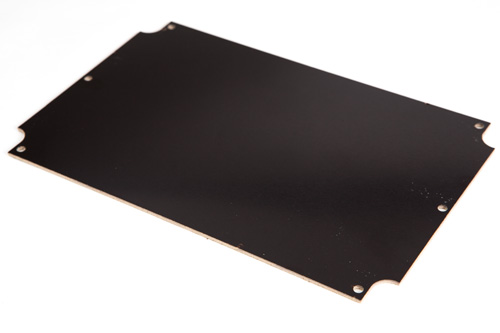

Mounting plate -

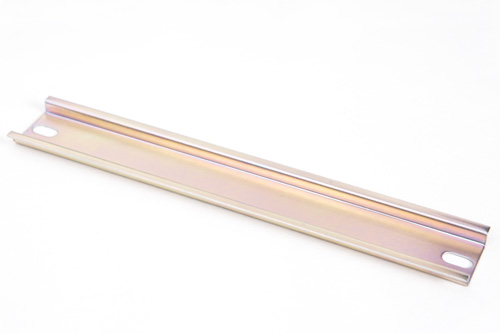

Supporting rail -
EMC Shielding
