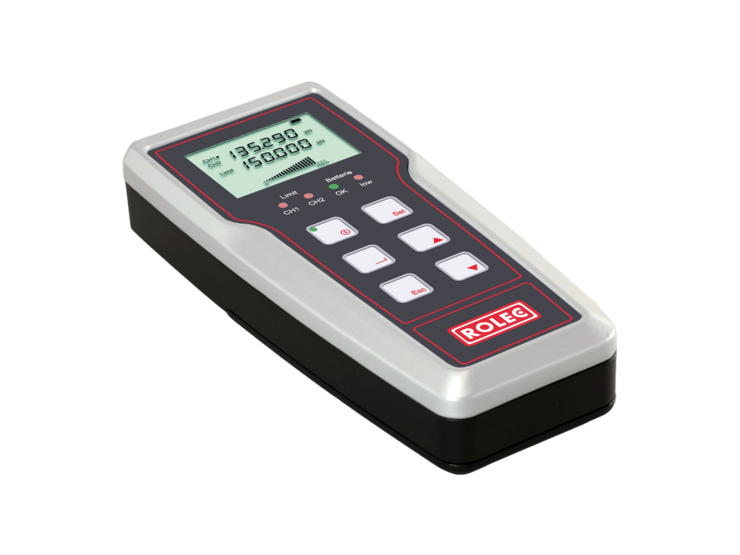

handCASE Version S enclosures with T shaped keypad area, in metallic silver/black RAL 9005
handCASE Version S enclosures with T shaped keypad area, in metallic silver/black RAL 9005

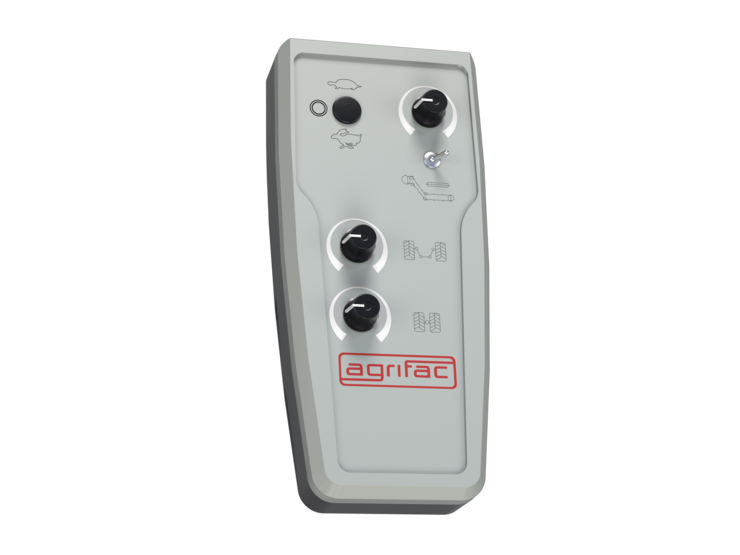

handCASE Version R enclosures with full keypad area in light grey, RAL 7035
handCASE Version R enclosures with full keypad area in light grey, RAL 7035
handCASE is available with an integrated battery compartment
handCASE is available with an integrated battery compartment
handCASE enclosures have a recessed top for a membrane keypad
handCASE enclosures have a recessed top for a membrane keypad
handCASE enclosures have screw pillars inside for fitting PCBs, displays etc
handCASE enclosures have screw pillars inside for fitting PCBs, displays etc
Accessory spring clip/holding bracket kit for storing the unit
Accessory spring clip/holding bracket kit for storing the unit
Accessory shoulder strap with protective caps for carrying the device
Accessory shoulder strap with protective caps for carrying the device
handCASE enclosures application
handCASE Version S enclosures with T shaped keypad area, in metallic silver/black RAL 9005
handCASE Version R enclosures with full keypad area in light grey, RAL 7035
handCASE is available with an integrated battery compartment
handCASE enclosures have a recessed top for a membrane keypad
handCASE enclosures have screw pillars inside for fitting PCBs, displays etc
Accessory spring clip/holding bracket kit for storing the unit
Accessory shoulder strap with protective caps for carrying the device
handCASE_video_group_en

handCASE

The extremely robust hand-held enclosure

IP 66, Optional: IP 67

The key product features:
• Enclosure material: diecast aluminium
• Enclosure surface:
• handCASE lid: powder coating, silver
• handCASE bottom: powder coating, RAL 9005
• handCASE-R: powder coating, RAL 7035
• Battery compartment
• Lid screws stainless steel 1.4567
• Integrated recess in cover for membrane keypad or front plate
• Ergonomic design for non-fatiguing work
• Enclosure seal: TPE moulded gasket, silicone-free

More


handCASE is a stylish and highly robust range of handheld enclosures in diecast aluminium. Thanks to their ergonomic design these enclosures sit very comfortably in the hand. The high strength of handCASE provides solid protection for internal electronics and components under the most extreme conditions. The enclosures are tested to IP 66 protection class and are available with or without battery compartments for 1.5V AA and 9V cells. Threaded screw bosses are provided inside for fitting circuit boards, mounting plates etc. Cable glands and other accessories are also available.We can supply handCASE enclosures fully customised to your requirements.

Request offer PDF datasheet
Product overview Dimensions Data Sheets Data
Enclosure sizes4 versions, 2 lid variants
Additional infoIntegrated recess in the lid for membrane keypad or front plates
Ergonomic design for non-fatiguing work
Alternative lid design for all enclosure sizes
Optional: Battery compartment made from ABS for 2 versions
EnclosureDie-cast aluminium allow:
EN AN-44300 DIN EN 1706
(GD Al Si 12/DIN 1725).
1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom
FasteningOptional: Holding clip (e.g. for strap)
Optional: Wall bracket for clip fastening
Optional: Carrying strap with protector
Internal mountingM3 fastening thread on the enclosure base and in the lid
Ingress protectionIP 66 / EN 60529
Optional: IP 67 / EN
Free-fall DIN EN 60068-2-32
GasketTPE moulded gasket, silicone-free
Lid screwsStainless steel 1.4567, captive
SurfacePowder coating
Lid: Silver
Bottom: RAL 9005, deep black
Optional: Special colours
CustomisingLearn more about our full customising service for installation-ready enclosures
