Required file formats for inquiries and production
To ensure we can process your inquiry quickly and efficiently and optimally prepare for production, we recommend providing your data in the file formats listed below.
You are, of course, welcome to submit information and documents in other formats as well. However, depending on the file format and data quality, additional processing or conversion may be required. This can increase the processing effort and turnaround time.
Using the recommended file formats helps us process your request quickly and ensure a smooth production process.
Recommended file formats:
.pdf & .step
Note:
• Please dimension the PDF from the center; do not include a title block.
• In the event of discrepancies, the PDF drawing takes precedence.
• Standard tolerance: DIN ISO 2768-mK
Recommended file formats:
.pdf & .step
Note:
• Please dimension the PDF from the center; do not include a title block.
• In the event of discrepancies, the PDF drawing takes precedence.
• Standard tolerance: DIN ISO 2768-mK

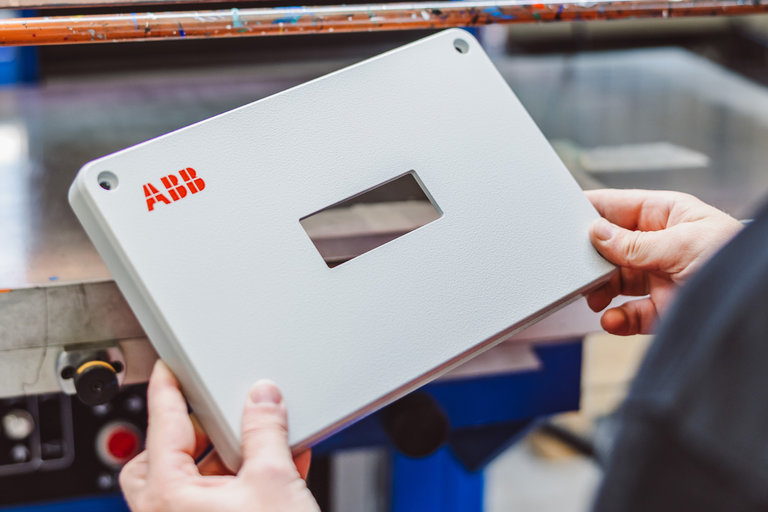

• Stock colors for design: RAL 9016 (Traffic White) and RAL 9005 (Jet Black)
Technical support throughout the entire development process
ROLEC offers technical services that are closely integrated with production, enabling efficient project execution. From rapid samples and expert consultation to flexible prototyping and complete assembly, we support you every step of the way—from the initial idea to the finished solution.
We handle projects of all sizes, ranging from custom one-offs and small batches to complex large-scale projects. The result is technically reliable, practical enclosure and system solutions tailored precisely to your application—all while shortening development times and ensuring clear project workflows.
