polyDOOR
The robust, hinged polyester enclosure
Optionally available certification:
IP 66
The key product features:
• Enclosure material: glass-fibre reinforced polyester
• Enclosure surface: similar to RAL 7032
• Integrated hinges
• Integrated viewing panel
• Lid screws in polyamide
• Flammability: UL-94 V-0
• Enclosure seal: O-ring gasket (EPDM)
More

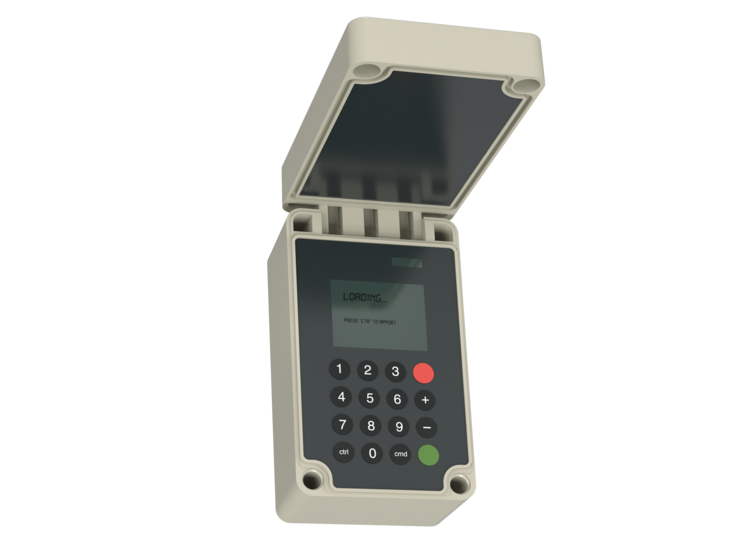

polyDOOR is a range of weather-resistant IP 66 enclosures in glass-fibre reinforced polyester that features a hinged front lid for easy access. The enclosures are ideal for industrial electronics and control equipment used in harsh indoor and outdoor applications.
Special features include integrated hinges for opening the lid, transparent front windows and optional lid fixings: slotted (standard), triangular or square head for tamper protection, and hand screws for fast access. Threaded fixing pillars are provided inside for mounting the components. polyDOOR is available in a wide range of standard sizes. Cable glands and other accessories such as terminal rails and mounting plates are also available.
We can supply polyDOOR enclosures fully customised to your requirements.
- polyDOOR
- PD 120
- Part No.
- 130.120.000
- Dimensions
- 120x140x100 Remember
- polyDOOR
- PD 122
- Part No.
- 130.122.000
- Dimensions
- 120x200x100 Remember
- polyDOOR
- PD 124
- Part No.
- 130.124.000
- Dimensions
- 120x260x100 Remember
- polyDOOR
- PD 160
- Part No.
- 130.160.000
- Dimensions
- 160x180x100 Remember
- polyDOOR
- PD 162
- Part No.
- 130.162.000
- Dimensions
- 160x260x100 Remember
- polyDOOR
- PD 164
- Part No.
- 130.164.000
- Dimensions
- 160x340x100 Remember
- polyDOOR
- PD 200
- Part No.
- 130.200.000
- Dimensions
- 200x220x120 Remember
- polyDOOR
- PD 202
- Part No.
- 130.202.000
- Dimensions
- 200x320x120 Remember
- polyDOOR
- PD 120 FE
- Part No.
- 131.120.000
- Dimensions
- 120x140x100 Remember
- polyDOOR
- PD 122 FE
- Part No.
- 131.122.000
- Dimensions
- 120x200x100 Remember
- polyDOOR
- PD 124 FE
- Part No.
- 131.124.000
- Dimensions
- 120x260x100 Remember
- polyDOOR
- PD 160 FE
- Part No.
- 131.160.000
- Dimensions
- 160x180x100 Remember
- polyDOOR
- PD 162 FE
- Part No.
- 131.162.000
- Dimensions
- 160x260x100 Remember
- polyDOOR
- PD 164 FE
- Part No.
- 131.164.000
- Dimensions
- 160x340x100 Remember
- polyDOOR
- PD 200 FE
- Part No.
- 131.200.000
- Dimensions
- 200x220x120 Remember
- polyDOOR
- PD 202 FE
- Part No.
- 131.202.000
- Dimensions
- 200x320x120 Remember
| Enclosure sizes | 8 |
| Further information | Corrosion-resistant lid fastening thread made form stainless steel |
| Various locking screws available | |
| Application-specific accessories available | |
| Full protective insulation in accordance with VDE 0100 | |
| Enclosure | Polyester glass fibre reinforced, halogen-free |
| similar to RAL 7032, pebble grey, surface resistance< 109 Ohm | |
| Optional: similar to RAL 9005, deep black, surface resistance< 109 Ohm | |
| 1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom. | |
| Flammability | UL 94 V-0, self-extinguishing |
| Fastening | Single-channel lid and assembly fastening outside of the enclosure interior Optional: External mounting brackets made from stainless steel |
| Internal mounting | M6 fastening thread on the enclosure floor |
| Ingress protection | IP 66 / EN 60529 |
| Gasket | EPDM O-ring gasket |
| Optional: Silicone gasket | |
| Lid screws | Polyamide, corrosion-resistant and captive, slotted design Optional lid screws: triangular, square and hand screw |
| Customising | Learn more about our full customising service for installation-ready enclosures |
