HMI and IPC panel solutions for Eaton
If you have an HMI control panel from the HMI PLC XV300, XP 500 industrial PC or XH300 HMI web panel series and require a high-quality, modern HMI enclosure.

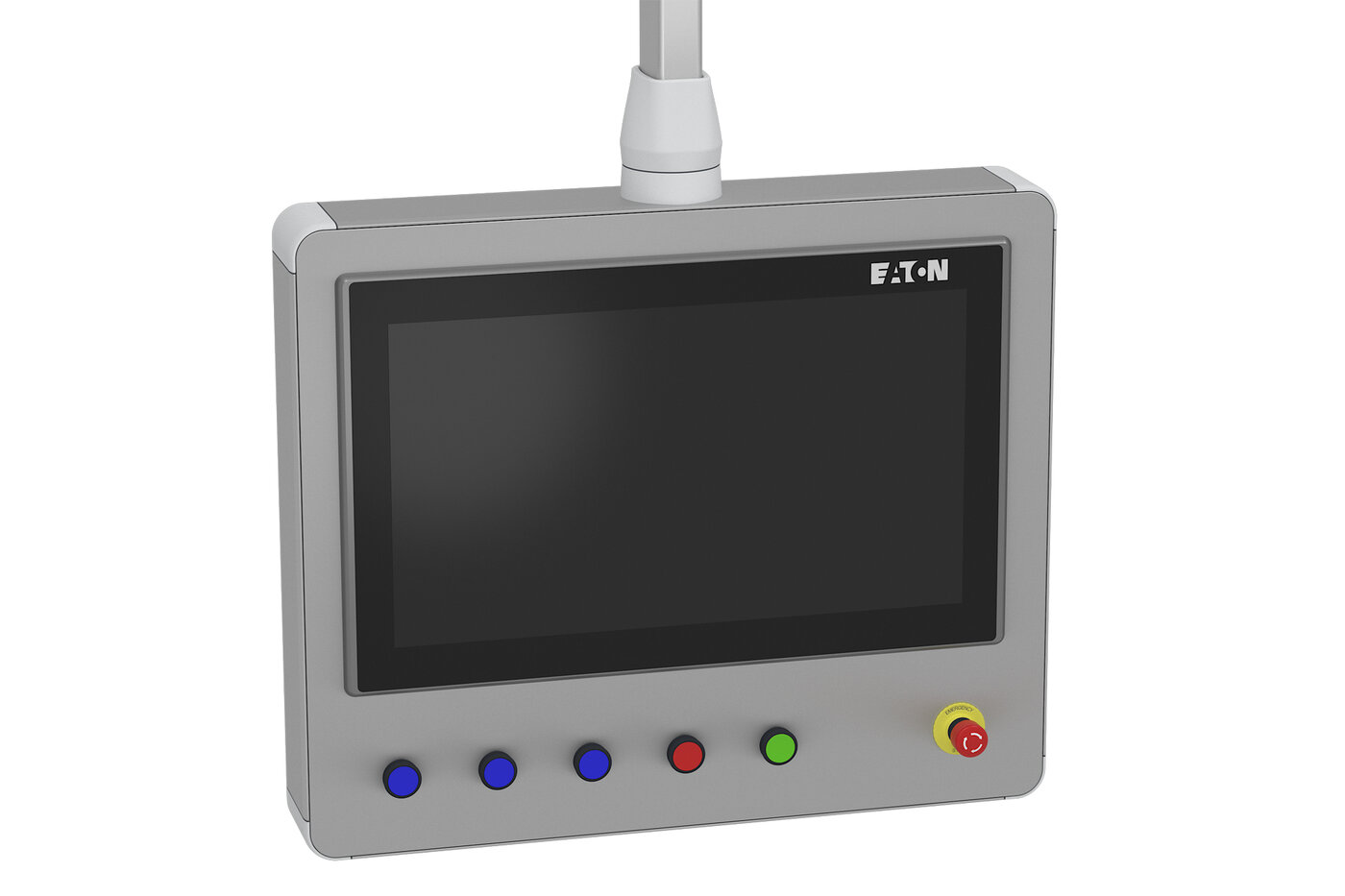

profiPANEL for Eaton
As the profiPANEL is available in nine different depths, it is an excellent solution for installations where air circulation is a key consideration. You are sure to find the right depth for your application here. Thanks to the ROLEC design, your Asem Panel-IPC fits perfectly into the front of the HMI enclosure. Narrow bezels, a modern design language and sophisticated technology are the hallmarks of this enclosure series. The option to have the corners of the enclosure in different colours also allows you to add colour accents or reflect your corporate identity.
profiPANEL is ideally suited for the following Asem Panel-IPCs:
-
HMI PLC XV300
-
Industrial PC XP 500
-
XH300 HMI Webpanel
Another tip: if you need a quick solution, you can fall back on the profiPANEL standard range. Four ready-made stock sizes with customisable front panels for built-in panels measuring 10″–12″, 12″–15″, 15″–17″ and 17″–21″.

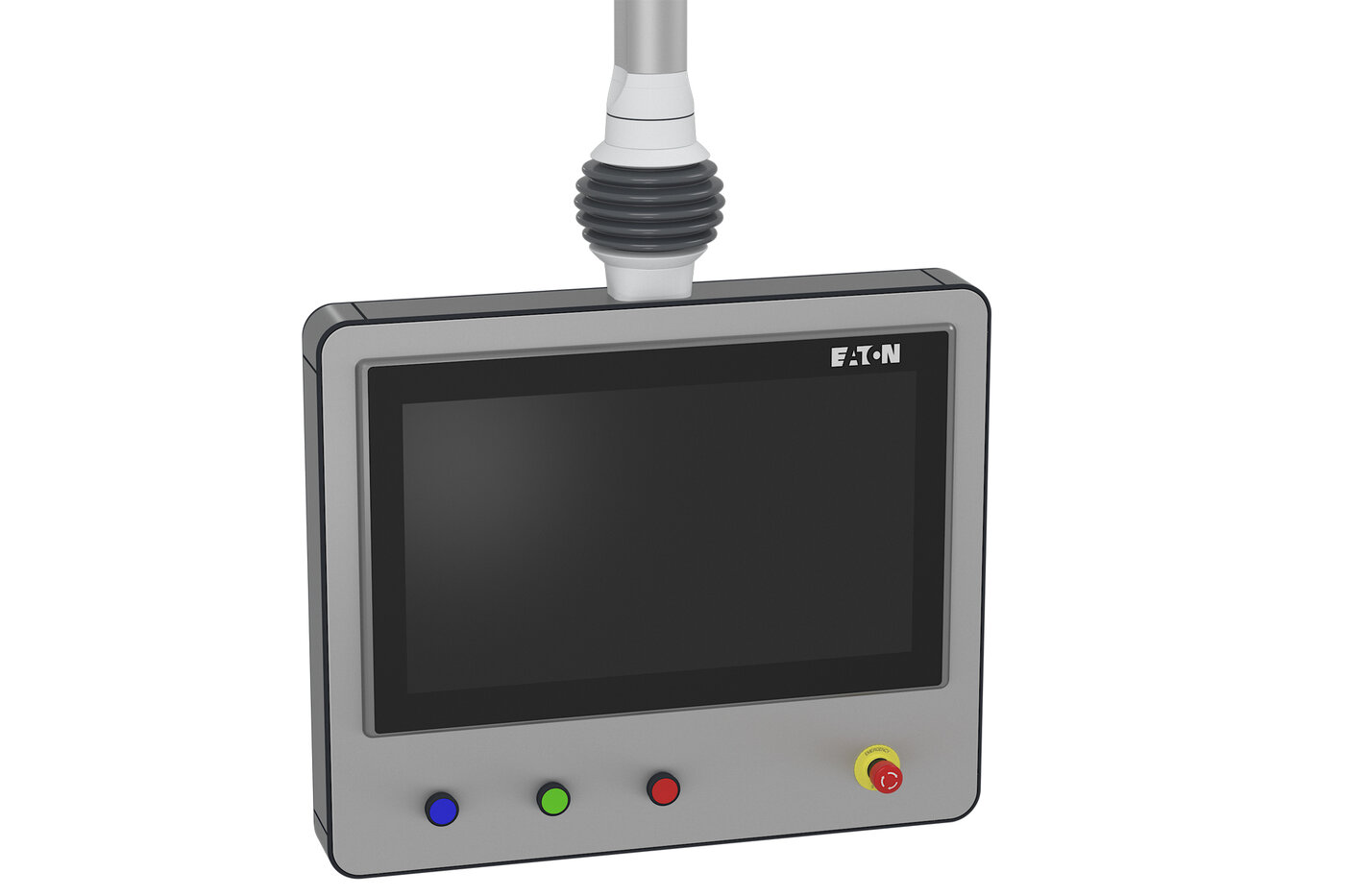

multiPANEL for Eaton
The premium multiPANEL enclosure is available in two depths. The dimensions cover virtually every conceivable application for Asem Panel-IPCs. Thanks to the ROLEC design, your Asem Panel-IPC also integrates seamlessly into the front of the HMI enclosure in this premium HMI enclosure series. Narrow bezels, a high-quality look reminiscent of modern smartphones, and sophisticated technology are the hallmarks of this enclosure series. Front panel machining for pushbuttons and/or emergency stop buttons is offered as standard by ROLEC as part of its full-service package, thus providing a flexible and cost-effective alternative to the standalone Asem Panel-IPC.
multiPANEL is ideally suited for the following Asem Panel-IPCs:
-
QT2150 – HT2150, QT2200 – HT2200, QT2250 – HT2250, QT3200 – HT3200, QT3500 – HT3500,
-
QT3400/QT3600, HT3400/HT3600, QT5400/QT5600, HT5400/HT5600
Suitable for installation depths of up to 81 mm. On request, we will be happy to check feasibility based on the exact model number of your PC.
Bracket solutions for Eaton
To complement the two HMI panel enclosures, multiPANEL and profiPANEL, ROLEC offers two modern support arm systems, both of which blend in perfectly with the HMI enclosures.
