ROLEC solutions for other manufacturers
As there are many manufacturers, both large and small, of both stand-alone and panel-mounted HMI devices, we are unable to list every single one here. However, for most manufacturers, we can still provide you with bespoke solutions for installing your panel PC or for connecting your stand-alone device to a mounting arm system. If you have any further questions, please feel free to contact us without obligation. We’ll be happy to help!
Solutions for connecting your self-contained panel PC with a 48 mm diameter round tube connection
If your panel PC manufacturer is not listed by name on our website, that’s no problem. Most manufacturers offer the option of mounting their devices on a 48 mm diameter round tube. And for other, non-standard mounting options, we can usually come up with a bespoke solution for you. Simply get in touch with us, with no obligation. We’ll be happy to help!

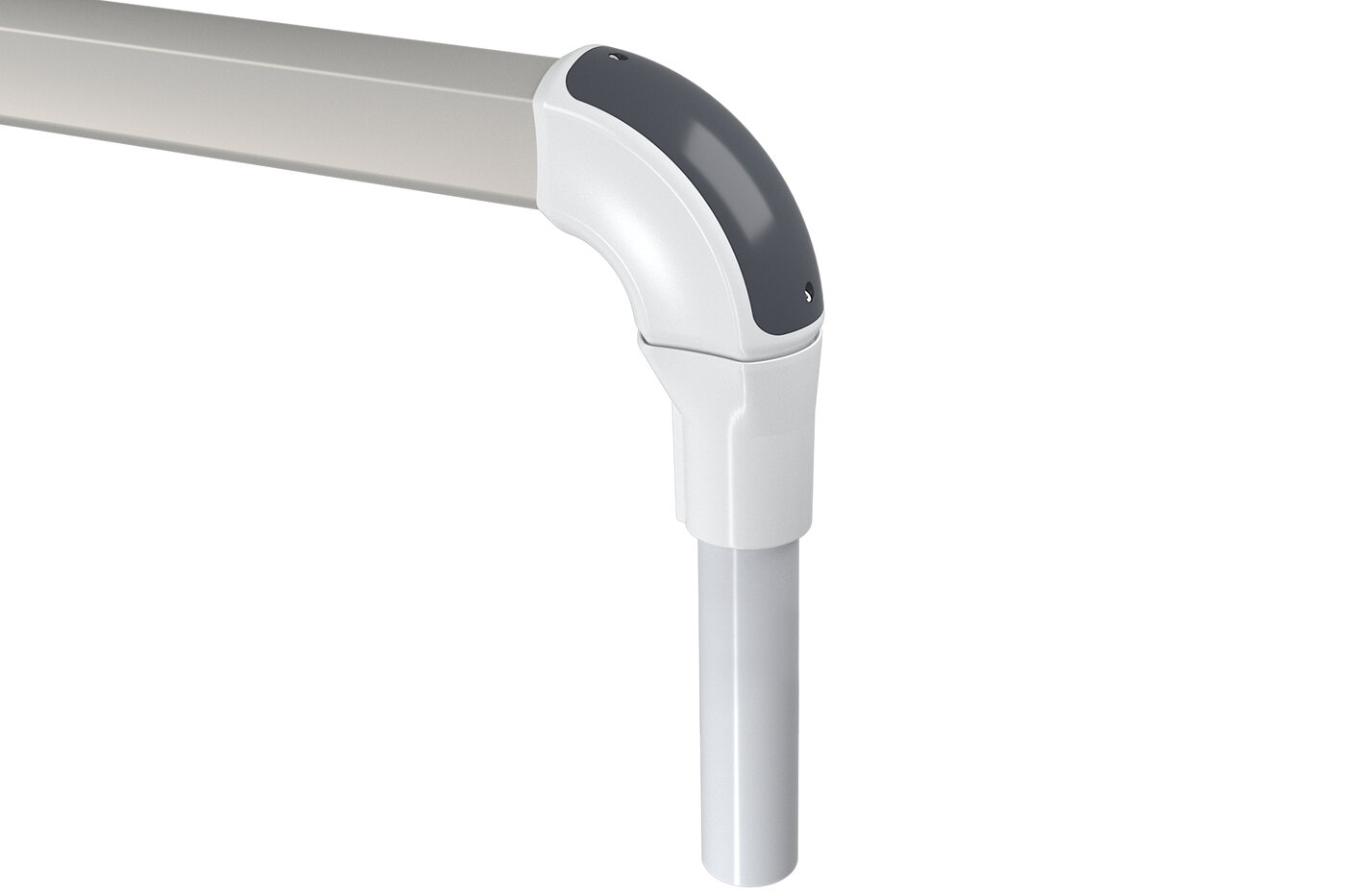

profiPLUS angle coupling 50/48
The profiPLUS 50/48 angle coupler allows direct mounting on an HMI device with a round tube mount. An additional coupler is no longer required. This coupler is particularly suitable for panel PCs without their own rotation function.
Components required for adaptation:
-
Angle coupling 50/48 Item no.: 142.020.002

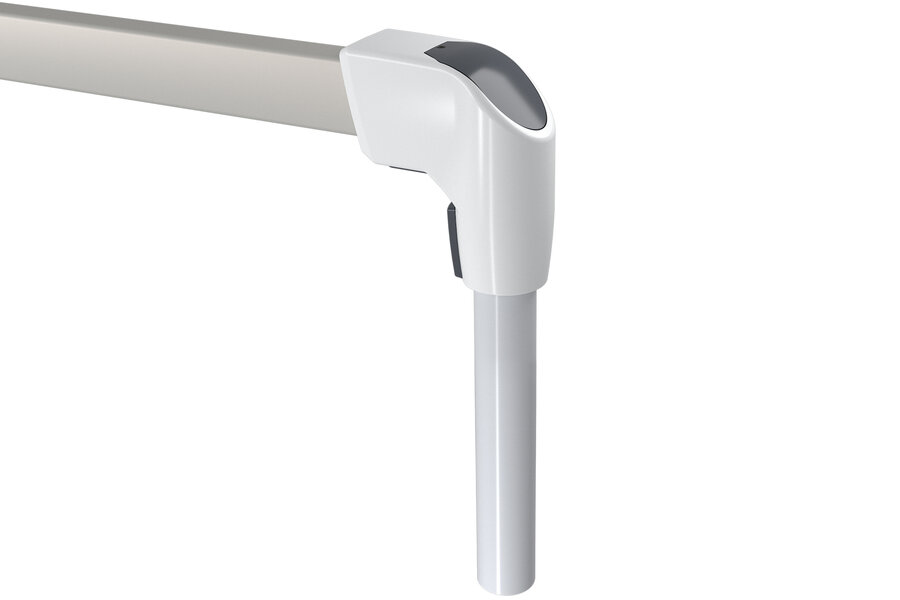

profiPLUS 50/48 adapter, including bracket
The 50/48 adapter (including elbow) from the profiPLUS 50 series allows a 48 mm diameter round tube to be connected using a single standard component. Please note that this version does not have a swivel function!
Components required for adaptation:
-
50/48 adapter including elbow, item no.: 142.020.001
-
Round tube Ø48 L= X mm (to be manufactured to the nearest millimetre) Item no.: 144.300.XXX
Universal HMI enclosure solutions
If your panel PC manufacturer is not listed by name on our website, this is not a problem. As a rule, it is usually possible to fit any panel PC into one of our HMI enclosures without any issues. We would be happy to work with you to find the best solution for your needs. Please feel free to get in touch with us, with no obligation. We’re happy to help!

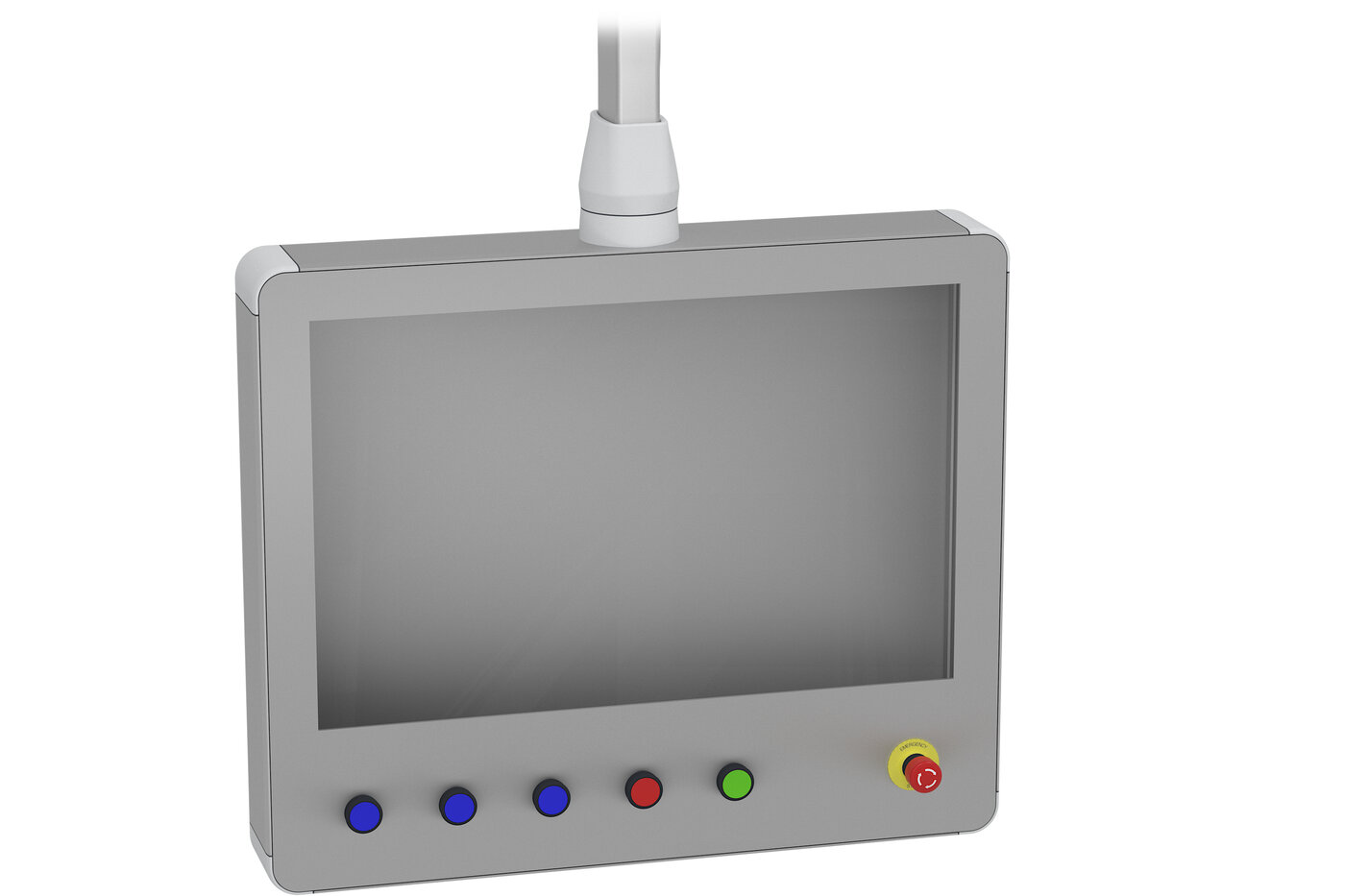

Thanks to the option of supplying profiPANEL in nine different depths, it is an excellent solution for installations where air circulation is a key consideration. You will always find the right depth for your application here. Thanks to ROLEC technology, your built-in panel PCs fit perfectly into the front of the HMI enclosure. Narrow bezels, a modern design language and sophisticated technology are the hallmarks of this enclosure series. The option to have the corners of the enclosure in different colours also allows you to add colour accents or reflect your corporate identity.
Another tip: if you need a quick solution, you can fall back on the profiPANEL standard range. Four ready-made stock sizes with customisable front panels for built-in panels measuring 10″–12″, 12″–15″, 15″–17″ and 17″–21″.

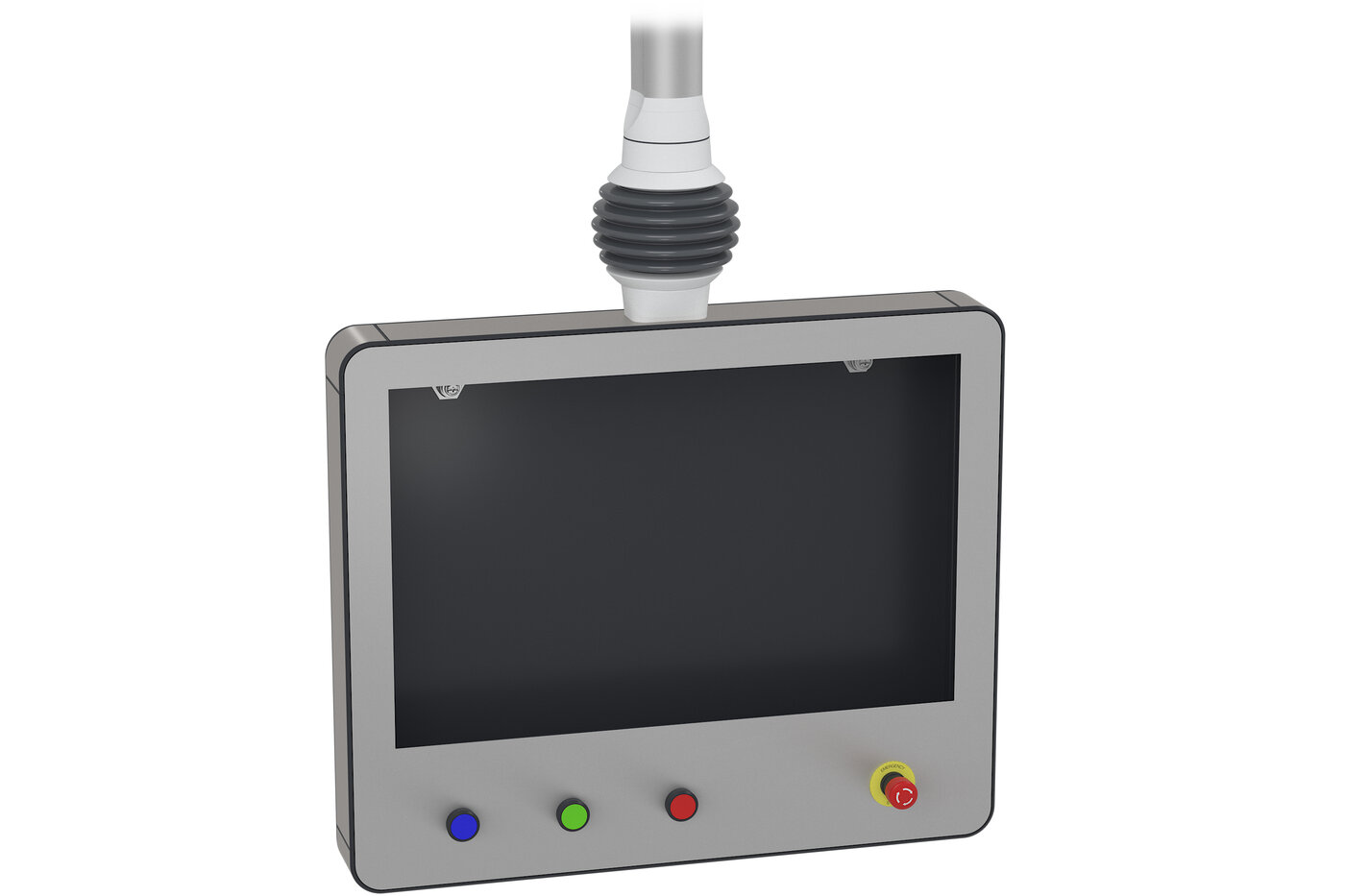

The premium multiPANEL enclosure is available in two depths. The dimensions have been designed to suit virtually any conceivable installation application. With this premium HMI enclosure series, too, your panel PC integrates seamlessly into the front of the HMI enclosure thanks to ROLEC technology. Narrow bezels, a high-quality look reminiscent of modern smartphones, and sophisticated technology are the hallmarks of this enclosure series. Front panel machining for pushbuttons and/or emergency stop buttons is offered as standard by ROLEC as part of its full service, thus providing a flexible and cost-effective alternative to a standalone panel PC. The mulitPANEL is suitable for installation depths of up to 81 mm. On request, we will be happy to check the feasibility, provided you supply the exact model number of your PC.
